Popular Volume and Sizes

Listed below are popular crucible volumes:

  • 1cc
  • 2cc
  • 3cc
  • 4cc
  • 5cc
  • 7cc
  • 12cc
  • 13cc
  • 15cc
  • 18cc
  • 25cc
  • 30cc
  • 40cc
  • 100cc
  • 156cc
  • 300cc

As always, SCM can manufacture to your needs and specifications.

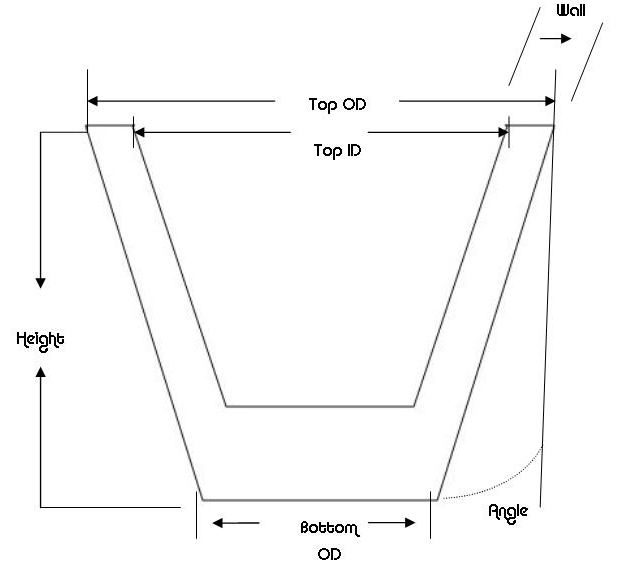

Use the drawing below for reference when you Request A Quote.

Volume (cc)Liner VolumeTop ODHeightWallAngleºSuggested Gun
10.320.5600.3840.09315
1.50.80.7000.4000.09315Telemark Thermionics
20.840.7060.4650.09315
31.440.8050.5450.09315
3.51.60.9600.4000.09315Thermionics
41.80.8650.5630.09315
42.10.8850.5950.09315
41.40.8460.6890.09315
5Available Upon RequestMDC
60.9720.5930.12515MDC
73.71.1250.5200.09315Telemark
74.41.1670.5630.09315Temescal
101.2500.6000.09315Leybold
128.31.2800.9400.09315
125.61.3500.6800.12515
137.91.2680.7000.10015Temescal
158.21.4720.6800.12515MDC
153.91.4800.6700.25015
1514.71.6400.9700.12515
1818.31.5000.9000.12515Telemark
2014.61.6730.7480.09315
25-4pkt17.11.8500.7810.09315
25-4pkt12.81.8500.7810.12515
25-6pkt16.31.6331.1140.09315
25-6pkt141.6331.1140.12515
3021.91.9200.8100.09315
30 no web18.51.7750.9400.12515
3010.31.7750.9400.25015
3020.21.7750.9400.09315
4017.02.0301.0200.25015
4030.42.0301.0200.09315Telemark
4016.92.0001.0620.25015
40272.0301.0200.12515Telemark
4030.22.0001.0620.09315
6247.62.2121.4000.09315
10082.72.7001.4900.09315
15694.73.2501.5300.25015
300Available Upon RequestTelemark
